SSE 15-15 Multi Function Block Making Machine

Block Making Machine

SSE 15-15 Multi Function Block Making Machine

Product Details

  • The rack is manufactured using high strength with a special welding technique, it resists vibrating shock.
  • It adopts a multi axis synchronizer vibration mode to ensure vertical downward to reach the best vibration effect.
  • Multi Axis forced mixer system has better adaptability to raw materials with different nature.
background

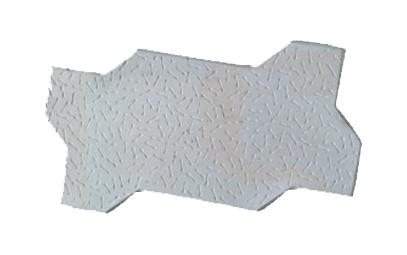

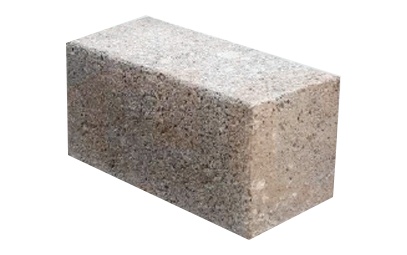

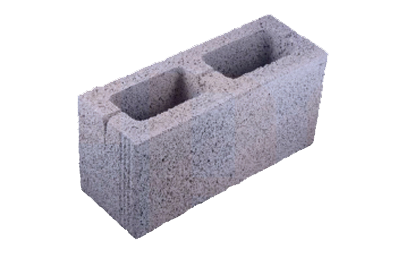

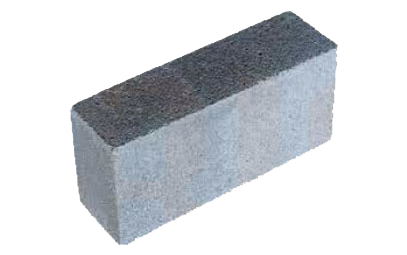

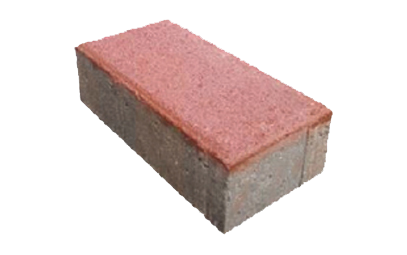

Size (mm) Moulding cycle Qty/Mould (pcs) Qty / 8hr (pcs) Block Sample
400 x 200 x 100 15 - 20s 16 15000 - 18000
400 x 200 x 150 15 - 20s 10 10000 - 12000
400 x 200 x 200 15 - 20s 8 8000 - 9600
200 x 100 x 60 15 - 20s 40 40000 - 48000
225 x 112.2 x 80 15 - 20s 36 35000 - 40000


We can Made:


Technical Data :

  • Dimension (L x B x H): 4300mm x 2200mm x 3500mm
  • Working Pressure : 21MPa
  • Vibration : Table Vibration
  • Motor Power Rating : 30KW
  • Pallet Size : 1100 x 900 x 30 & 40
  • Cycle Time : 15 - 20 sec
  • Power : 60KW
